ISO/IEC 17025: 2017 NABL Accredited Laboratory For Electrical, Electronics, Automotive, IT, Cell & Battery, Lighting And Medical Products


Environmental Testing:

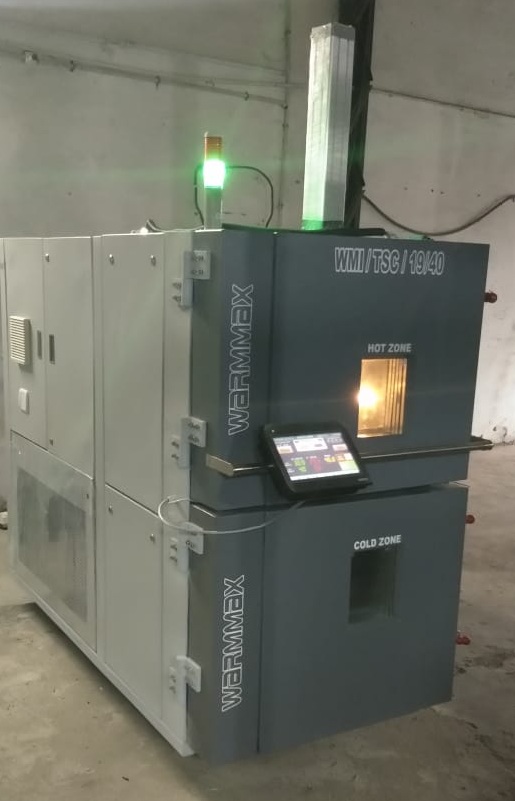

A-TS have state of art testing facility for Environment Testing with modern and accurate Environment Chamber (Humidity chamber with temperature range -60°C to 200°C & Humidity Ranges above 97% and Humidity chamber with dimensions 8x6x6 Feet for large testing ranges), compliance with IEC standards. Some of the basic equipment that are needed for the testing are temperature and humidity chambers, thermal shock chambers, vibration machines and salt-spray chambers.

Tests We Offer:
  1. Cold Test
  2. Dry Heat Test
  3. Damp Heat Test
  4. Vibration Testing
  5. Thermal Shock Test
  6. Salt Spray Test
  7. Ingress Protection
  8. Drop Test
  9. Impact Test
  10. Ageing Test
  11. Low Pressure/Vacuum Testing
  12. Thermal Cycling
  13. Composite Temperature & Humidity
  14. Dew Formation
  15. Dust resistance Test
  16. Rapid Temperature Cycling
  17. Water Immersion

Standards A-TS follow for Testing:
MIL-STD-810F Department of defense test method standard: environmental engineering considerations and laboratory tests
MIL-STD-810G Department of defense test method standard: environmental engineering considerations and laboratory tests
QM: 333 Standard for environmental testing of telecommunication equipment
JSS: 55555 Joint services specification, a system of documented technical specifications used by the Indian armed forces.
IEC 60068- 2-14 International standard for the environmental testing of electro technical products-(Thermal Cycling)
IEC 60068- 2-11 International standard for the environmental testing of electro technical products-(Salt Spray)
IEC 60068- 2-2 International standard for the environmental testing of electro technical products-(Dry Heat Test)
IEC 60068- 2-30 International standard for the environmental testing of electro technical products-(Damp Heat Test)
IEC 60068- 2-1 International standard for the environmental testing of electro technical products-(Cold Test)
IS 9000-2-14 Basic environmental testing procedures for electronic and electrical items-(Rapid change in Temperature)
IS 9000-14-1 Basic environmental testing procedures for electronic and electrical items-(Thermal Shock)
IS 9000-14-2 Basic environmental testing procedures for electronic and electrical items-(Thermal Cycling)
IS 9000-3-1 Basic environmental testing procedures for electronic and electrical items-(Dry Heat Test)
IS 9000-4 Basic environmental testing procedures for electronic and electrical items-(Damp Heat Test)
IS 9000-6 Basic environmental testing procedures for electronic and electrical items-(Composite Temperature Test)
IS 9000-14-1 to 4 Basic environmental testing procedures for electronic and electrical items-(Cold Test)
JASO D 001 General rules of environmental testing methods for automotive electronic equipment
ISO 16750-4 Environmental conditions and testing for electrical and electronic equipment: climatic loads
ISO 16750-3 Environmental conditions and testing for electrical and electronic equipment: Free Fall Test
SAE J1455 Environmental Testing for heavy duty Vehicle application
ASTM B117 Basic environmental testing procedures for electronic and electrical items-(Salt Spray)
ISO 10289 Basic environmental testing procedures for electronic and electrical items-(Salt Spray)
Why environmental testing is required?
Environmental testing simulates the distinct climatic conditions and mechanical stress that products are uncovered to in the course of their lifetime. In general, environmental tests exhibit that your merchandise has the build quality to function perfectly, irrespective of what the conditions are.
Environmental testing is the measurement of the performance of equipment under specified environmental conditions, such as:

  1. Extremely High and Low Temperatures
  2. Large, Swift Variations in Temperature
  3. Blown and Settling Sand and Dust
  4. Salt Spray and Salt fog
  5. Very high or Low Humidity
  6. Wet environments, Waterproof-ness and Icing
  7. Presence of corrosive Material
  8. Fungus and Fluids Susceptibility
  9. Vibrations and Gun fire
  10. Acceleration
What do we analyze in Environmental Testing?
Environmental tests are performed to check the build quality of the Product in various type of Environmental conditions, so that the product works perfectly in any Environmental conditions. During testing, possible weaknesses can be identified and product improvements can be initiated at an early stage.

Some typical problems in samples analyzed in Environmental Testing are:
  1. Deformation in Dimension
  2. Electrical/Electronic parts stop working
  3. Break In enclosure or Components
  4. Ingress of water or dust into the enclosure, which can damage the Products.
  5. Corrosion over metal parts
  6. Failure of Insulation.
What products require Environmental Testing?
Electrical/Electronic Components
  1. Lithium-ion Batteries
  2. Electric motors
  3. Mobile Chargers used in Vehicles
  4. Music System used in Vehicles
  5. Amplifiers Used in Vehicles
  6. Sensors used in Vehicles
  7. Cameras used in Vehicles
  8. Display unit used in vehicles
Luminaries
  1. Vehicle light (headlamps, taillamps, indicators)
  2. General Purpose Light (Led Light, Interior & exterior Lights)
  3. Light use in Railways
  4. Light use in defence equipments

Engine and its components
Why Choose A-TS for Environmental Testing:
  • - Humidity chamber with temperature range -60°C to 200°C & Humidity Ranges above 97%
  • - Humidity chamber with dimensions 8x6x6 Feet for large testing ranges
  • - Right Technical Support at Right Time
  • - Improved Customer Support Team
  • - Standardized Operating Procedures
  • - Right time Delivery of Test Report
  • - Free of cost Online Witness Testing
  • - Optimized Cost per Project
  • - For more information regarding the Scope of Standards, Products and Main Tests, please click on the link
